Auto-tuning (Fixed-Wing)

Auto-tuning automates the process of tuning the PX4 rate and attitude controllers, which are the most important controllers for stable and responsive flight (other tuning is more "optional").

Tuning only needs to be done once, and is recommended unless you're using a vehicle that has already been tuned by the manufacturer (and not modified since).

WARNING

Auto-tuning is performed while flying. The airframe must fly well enough to handle moderate disturbances, and should be closely attended:

• Test that your vehicle is stable enough for autotuning.
• Be ready to abort the autotuning process. You can do this by changing flight modes
  or using an auto-tune enable/disable switch (if configured)
  .
• Verify that the vehicle flies well after tuning.

Pre-tuning Test

The vehicle must be able to fly and adequately stabilize itself before running auto-tune. This test ensures that the vehicle can fly safely in position controlled modes.

To make sure the vehicle is stable enough for auto-tuning:

1. Perform a normal preflight safety checklist to ensure the flight zone is clear and has enough space.

2. Take off and

   fly at cruise speed in Position mode or Altitude mode
   .

3. Use the RC transmitter roll stick to perform the following maneuver, tilting the vehicle just a few degrees: roll left > roll right > center (The whole maneuver should take about 3 seconds). The vehicle should stabilise itself within 2 oscillations.

4. Repeat the maneuver, tilting with larger amplitudes at each attempt. If the vehicle can stabilise itself within 2 oscillations at ~20 degrees move to the next step.

5. Repeat the same maneuvers but on the pitch axis. As above, start with small angles and confirm that the vehicle can stabilise itself within 2 oscillations before increasing the tilt.

If the drone can stabilize itself within 2 oscillations it is ready for the auto-tuning procedure.

WARNING

If the drone cannot stabilize itself sufficiently, follow the instructions in the troubleshooting section. These explain the minimal manual tuning to prepare the vehicle for auto-tuning.

Auto-tuning Procedure

The auto-tuning sequence must be performed in a safe flight zone, with enough space. It takes about 40 seconds (between 19 and 68 seconds). For best results, we recommend running the test in calm weather conditions.

The recommended mode for autotuning is

Hold mode

, but any other flight mode can be used. The RC sticks cannot be used during autotuning (moving the sticks will stop the autotune operation).

The test steps are:

1. Perform the pre-tuning test.

2. Takeoff using RC control

   Once flying at cruise speed, activate Hold mode. This will guide the plane to fly in circle at constant altitude and speed.

3. Enable autotune.

   TIP

   If an Enable/Disable Autotune Switch is configured you can just toggle the switch to the "enabled" position.

   1. In QGroundControl, open the menu Vehicle setup > PID Tuning:



   2. Select either the Rate Controller or Attitude Controller tabs.

   3. Ensure that the Autotune enabled button is enabled (this will display the Autotune button and remove the manual tuning selectors).

   4. Read the warning popup and click on OK to start tuning.

4. The drone will first start to perform quick roll motions followed by pitch and yaw motions. The progress is shown in the progress bar, next to the Autotune button.

5. The tuning will be immediately/automatically be applied and tested in flight (by default). PX4 will then run a 4 second test and revert the new tuning if a problem is detected.

WARNING

If any strong oscillations occur, land immediately and follow the instructions in the Troubleshooting section below.

Additional notes:

• Autotuning can also be run in Altitude mode or Position mode. However running the test while flying straight requires a larger safe area for tuning, and does not give a significantly better tuning result.

• Whether tuning is applied while flying or after landing can be configured using parameters.

Troubleshooting

Drone oscillates when performing the pre-tuning test

Slow oscillations (1 oscillation per second or slower): this often occurs on large platforms and means that the attitude loop is too fast compared to the rate loop.

• Increase FW_R_TC and FW_P_TC by steps of 0.1.

Fast oscillations (more than 1 oscillation per second): this is because the gain of the rate loop is too high.

• Decrease FW_RR_P, FW_PR_P, FW_YR_P by steps of 0.01.

The auto-tuning sequence fails

If the drone was not moving enough during auto-tuning, the system identification algorithm might have issues to find the correct coefficients.

Increase the

FW_AT_SYSID_AMP

parameter by steps of 1 and trigger the auto-tune again.

The drone oscillates after auto-tuning

Due to effects not included in the mathematical model such as delays, saturation, slew-rate, airframe flexibility, the loop gain can be too high. To fix this, follow the same steps described when the drone oscillates in the pre-tuning test.

I still can't get it to work

Attempt manual tuning using the guides listed in See also below.

Optional Configuration

Apply Tuning when In-Air/Landed

By default fixed wing tuning the parameters are applied while flying, and then PX4 runs a test to confirm that the controllers work properly. This behaviour can be configured using the FW_AT_APPLY parameter:

• 0: the gains are not applied. This is used for testing purposes if the user wants to inspect results of the auto-tuning algorithm without using them directly.
• 1: apply the gains after disarm (default for multirotors). The operator can then test the new tuning while taking-off carefully.
• 2: apply immediately (default for fixed-wings). The new tuning is applied, disturbances are sent to the controller and the stability is monitored during the next 4 seconds. If the control loop is unstable, the control gains are immediately reverted back to their previous value. If the test passes, the pilot can then use the new tuning.

Enable/Disable Autotune Switch

A remote control switch can be configured to enable/disable autotune (in any mode) using an RC AUX channel (note, this is only supported on fixed-wing vehicles).

To map a switch:

1. Select an RC channel on your controller to use for the autotune enable/disable switch.
2. Set RC_MAP_AUX1 to match the RC channel for your switch (you can use any of RC_MAP_AUX1 to RC_MAP_AUX6).
3. Set FW_AT_MAN_AUX to the selected channel (i.e. 1: Aux 1 if you mapped RC_MAP_AUX1).

The auto tuner will be disabled when the switch is below 0.5 (on the manual control setpoint range of of [-1, 1]) and enabled when the switch channel is above 0.5.

If using an RC AUX switch to enable autotuning, make sure to select the tuning axes before flight.

Select Tuning Axis

Fixed-wing vehicles (only) can select which axes are tuned using the FW_AT_AXES bitmask parameter:

• bit 0: roll (default)
• bit 1: pitch (default)
• bit 2: yaw

Developers/SDKs

Autotuning is started using MAV_CMD_DO_AUTOTUNE_ENABLE MAVLink command.

At time of writing the message is resent at regular intervals to poll PX4 for progress: the COMMAND_ACK includes result that the operation is in progress, and also the progress as a percentage. The operation completes when the progress is 100% or the vehicle lands and disarms.

INFO

This is not a MAVLink-compliant implementation of a command protocol long running command. PX4 should stream progress as the protocol does not allow polling.

The feature is not yet supported by MAVSDK.

Background/Detail

PX4 uses PID controllers (rate, attitude, velocity, and position) to calculate the outputs required to move a vehicle from its current estimated state to match a desired setpoint. The controllers must be well tuned in order to get the best performance out of a vehicle. In particular, a poorly tuned rate controller results in less stable flight in all modes, and takes longer to recover from disturbances.

Generally if you use a frame configuration that is similar to your vehicle then the vehicle will be able to fly. However unless the configuration precisely matches your hardware you should tune the rate and attitude controllers. Tuning the velocity and position controllers is less important because they are less affected by vehicle dynamics, and the default tuning configuration for a similar airframe is often sufficient.

Autotuning provides an automatic mechanism to tune the rate and attitude controllers. It can be used to tune fixed-wing and multicopter vehicles, and VTOL vehicles when flying as a multicopter or as a fixed-wing (transition between modes must be manually tuned). In theory it should work for other vehicle types that have a rate controller, but currently only the above types are supported.

Automatic tuning works well for the multicopter and fixed-wing vehicle configurations supported by PX4, provided the frame is not too flexible (see below for more information).

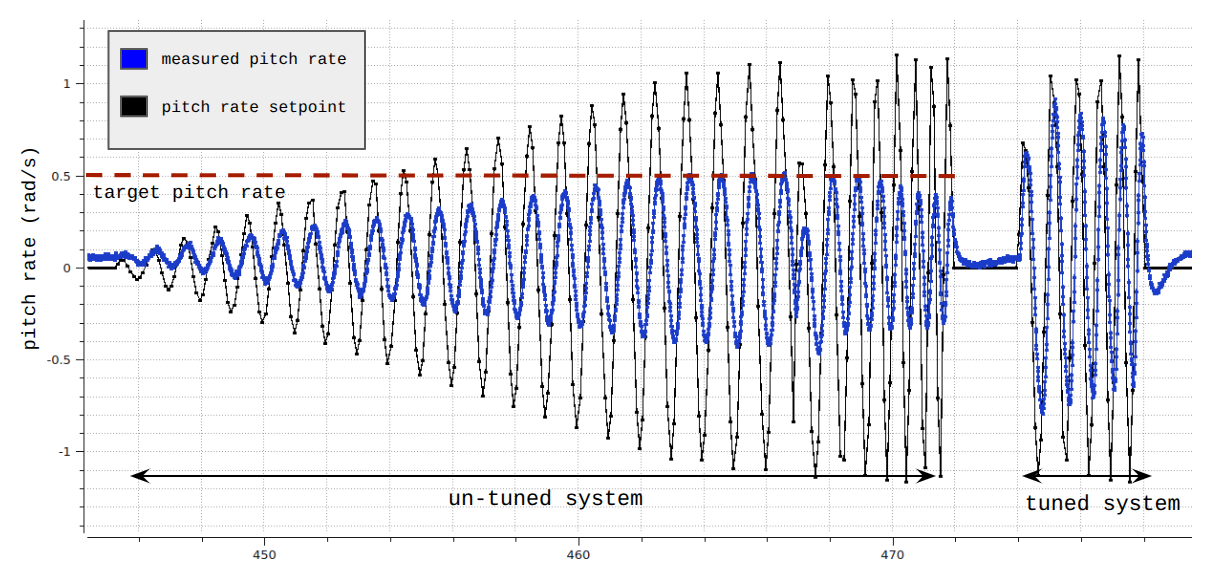

The vehicle must be flying in an altitude-stabilized mode (such as Altitude mode, Hold mode, or Position mode). The flight stack will apply a small disturbance to the vehicle in each axis and then attempt to calculate the new tuning parameters. For fixed-wing vehicles the new tuning is applied in-air by default, after which the vehicle tests the new settings and reverts the tuning if the controllers are not stable. For multicopter, the vehicle lands and applies the new tuning parameters after disarming; the pilot is expected to then take off carefully and test the tuning.

The tuning process takes about 40 seconds (between 19 and 70 seconds). The default behaviour can be configured using parameters.

FAQ

What frames types are supported?

Autotuning is enabled for multicopter, fixed-wing, and hybrid VTOL fixed-wing vehicles.

While it is not yet enabled for other frame types, in theory it an be used with any frame that uses a rate controller.

Does autotuning work for all supported airframes?

The mathematical model used by autotuning to estimate the dynamics of the drone assumes this it is a linear system with no coupling between the axes (SISO), and with a limited complexity (2 poles and 2 zeros). If the real drone is too far from those conditions, the model will not be able to represent the real dynamics of the drone.

In practise, autotuning generally works well for fixed-wing and multicopter, provided the frame is not too flexible.

How long does autotuning take?

Tuning takes 5s-20s per axis (aborted if tuning could not be established in 20s) + 2s pause between each axis + 4s of testing if the new gains are applied in air.

A multicopter must tune all three axes, and by default does not test the new gains in-air. Tuning will therefore take between 19s (5 + 2 + 5 + 2 + 5) and 64s (20x3 + 2x2).

By default a fixed-wing vehicle tunes all three axes and then tests the new gains in-air. The range is therefore between 25s (5 + 2 + 5 + 2 + 5 + 2 + 4) and 70s (20x3 + 3x2 + 4).

Note however that the above settings are defaults. A multicopter can choose to run the tests in air, and a fixed-wing can choose not to. Further, a fixed-wing can choose to tune fewer axes.

Anecdotally, it usually takes around 40s for either vehicle.

See also

• Fixed-Wing PID Tuning Guide
• Parameters > Autotuning (prefixed with FW_AT_).
