Gazebo Worlds

This topic provides imagery/information about the Gazebo worlds supported by PX4.

The default world is spawned by default, though this may be overridden by a model specific world. Developers can also manually specify the world to load: Gazebo > Specify World (or Gazebo Models Repository).

The source code for supported worlds can be found in the Gazebo Models Repository on GitHub here: PX4/PX4-gazebo-models/tree/main/worlds.

Empty (Default)

Empty world (a grey plane). This is used by default.

PX4-gazebo-models/main/worlds/default.sdf

screenshot of default world

Aruco

Aruco world is the default world with the addition of an ArUco marker.

This is used in conjunction with the x500_mono_cam_down airframe to test precision landing.

PX4-gazebo-models/main/worlds/aruco.sdf

screenshot of Aruco world

Baylands

Baylands world surrounded by water.

PX4-gazebo-models/main/worlds/bayland.sdf

Screenshot of Baylands world

Lawn

Lawn is a flat green world that is a less-optimized alternative to rover world. It is not recommended as the low frame rate causes segmentation faults on some frames.

PX4-gazebo-models/main/worlds/lawn.sdf

screenshot of lawn world

Rover

Rover world is optimised for rovers (and will be further optimised for rovers) and is the default world for Ackermann Rover (4012) (make px4_sitl gz_rover_ackermann) and Differential Rover ((r1-rover (4009)) (make px4_sitl gz_r1_rover).

PX4-gazebo-models/main/worlds/rover.sdf

screenshot of rover world

INFO

Rover world is very similar to lawn world, but with these tow main differences:

  • Grid on the ground which is useful as a reference while driving.
  • Higher update rate which solves segfault issues specifically with rovers with ackermann steering.

Walls

World with walls that is designed for testing collision prevention.

PX4-gazebo-models/main/worlds/walls.sdf

screenshot of walls world

Windy

Empty world with wind enabled.

PX4-gazebo-models/main/worlds/windy.sdf

Moving Platform

main (planned for: PX4 v1.16+)

Empty world with the addition of a flat moving platform, to simulate drone operations from moving vehicles like ships or trucks. The platform is controlled by a plugin which is included in the world. The platform is at a height of 2m, so place the vehicle on it with:

PX4_GZ_MODEL_POSE=0,0,2.2 PX4_GZ_WORLD=moving_platform make px4_sitl gz_standard_vtol

The plugin can be configured with the following environment variables:

  • PX4_GZ_PLATFORM_VEL: Platform speed (m/s).
  • PX4_GZ_PLATFORM_HEADING_DEG: Platform heading and direction of velocity (degrees). 0 = east, positive direction is counterclockwise.

PX4-gazebo-models/main/worlds/moving_platform.sdf

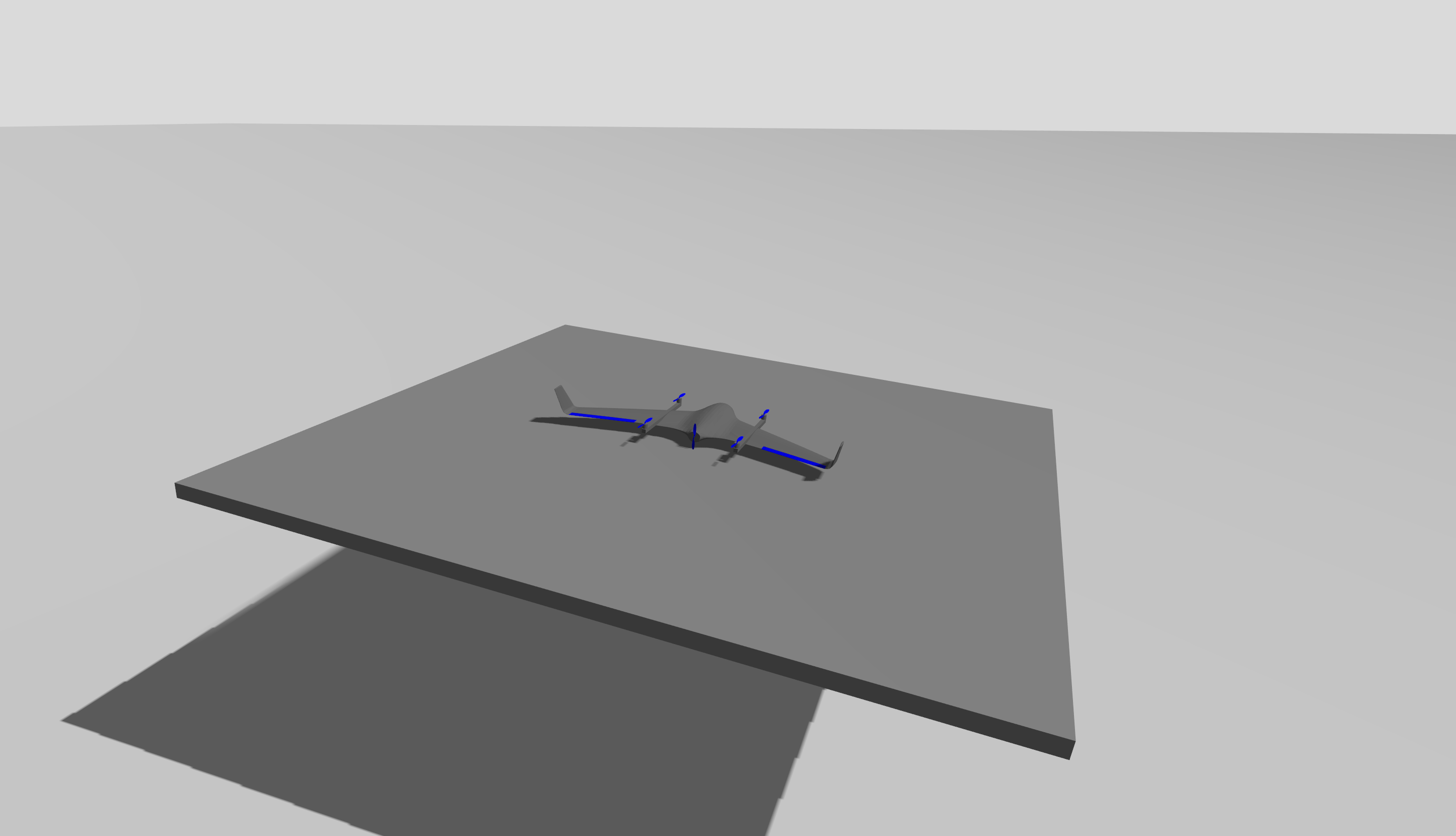

screenshot of moving platform world

TIP

The moving platform plugin can also be used within other worlds. For more information, see the plugin README.

Model Specific Worlds

Some vehicle models rely on the physics / plugins of a specific world. The PX4 toolchain will automatically spawn a world that has the same name as the vehicle model if one exists (instead of the default world):

The model specific worlds are:
