ARK PAB Power Module
The ARK PAB Power Module is an advanced power module rated for 60A continuous battery current at 20°C ambient. For higher continuous current needs, running multiple power modules in parallel is recommended. Note that at 60A and 20°C without cooling, the 5V regulator is de-rated to a 3A continuous output.

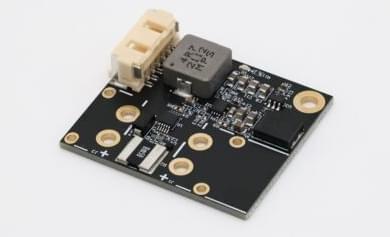

This power module is also available without connectors:
Де купити
Замовте цей модуль з:
Характеристики обладнання
TI INA226 Digital Power Monitor
- 0.0005 Ohm Shunt
- I2C Interface
5.2V 6A Step-Down Regulator
- 33V Maximum Input Voltage
- 5.8V Minimum Input Voltage at 6A Out
- Output Over-Voltage Protection
- Output Over-Current Protection
Connections
- XT60 Battery Input / Solder Pad Battery Input (No Connector version)
- XT60 Battery Output / Solder Pad Battery Output (No Connector version)
- 6 Pin Molex CLIK-Mate Output
Other
- USA Built
- FCC Compliant
- Includes 6 Pin Molex CLIK-Mate Cable
Additional Information
- Weight: 17.9 g
- Dimensions: 4.75 cm x 3.43 cm x 1.15 cm
Налаштування PX4
- Enable the SENS_EN_INA226 parameter if it not enabled.
- Reboot the flight controller.
